HORIZONTAL PUMP PMC-2
HORIZONTAL PUMP PMC-2
- Made of Polypropylene (PP), PVC or PEHD is guaranteed to a wide range of chemicals with temperatures up to 80 ºC
- With single or double flow seal
- Extremely easy maintenance
- No metal part is in contact with the pumped liquid

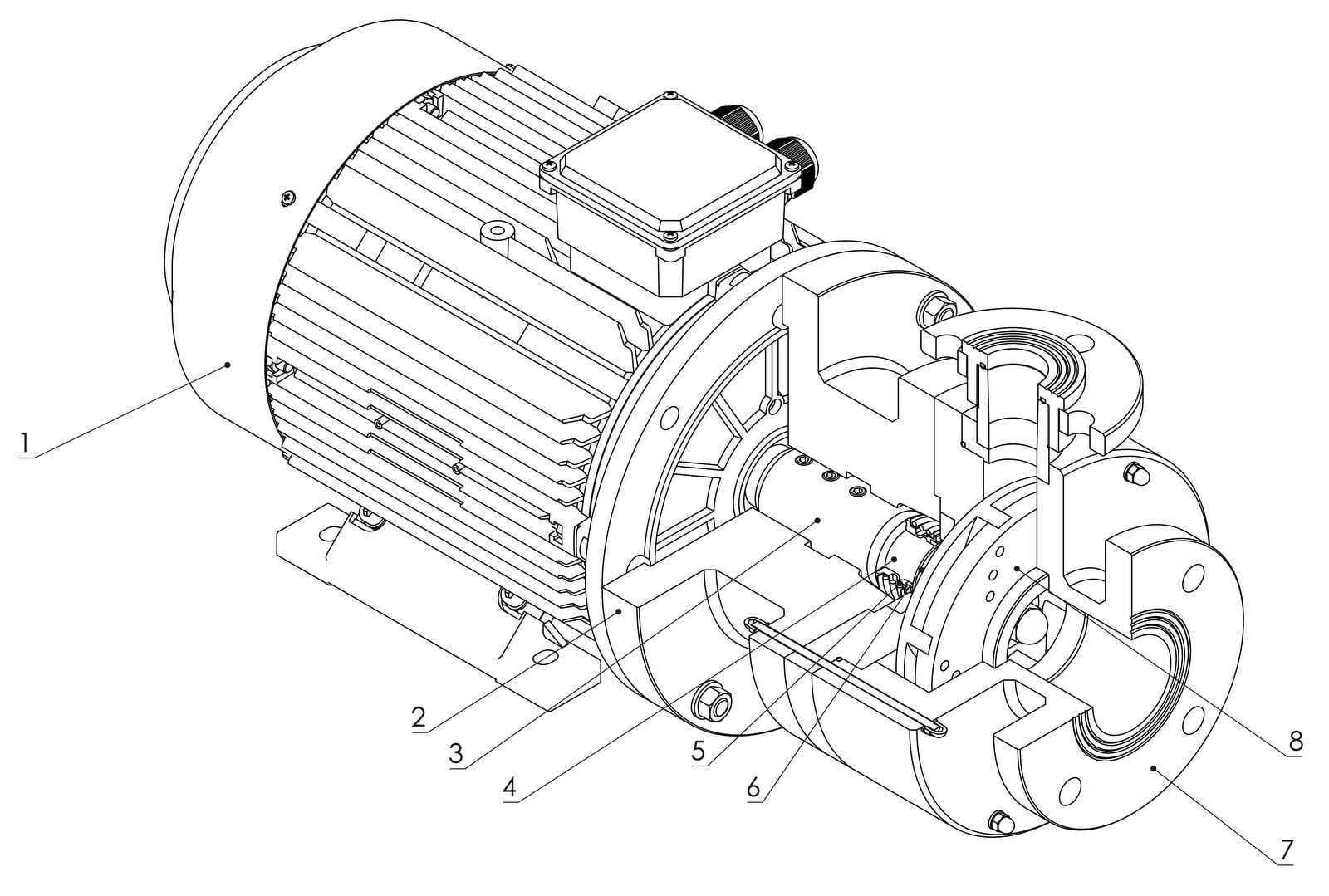

- Motor
- Pump Support
- Shaft
- Bush
- Rotating Mechanical Seal
- Fixed Ring
- Pump Housing
- Impeller

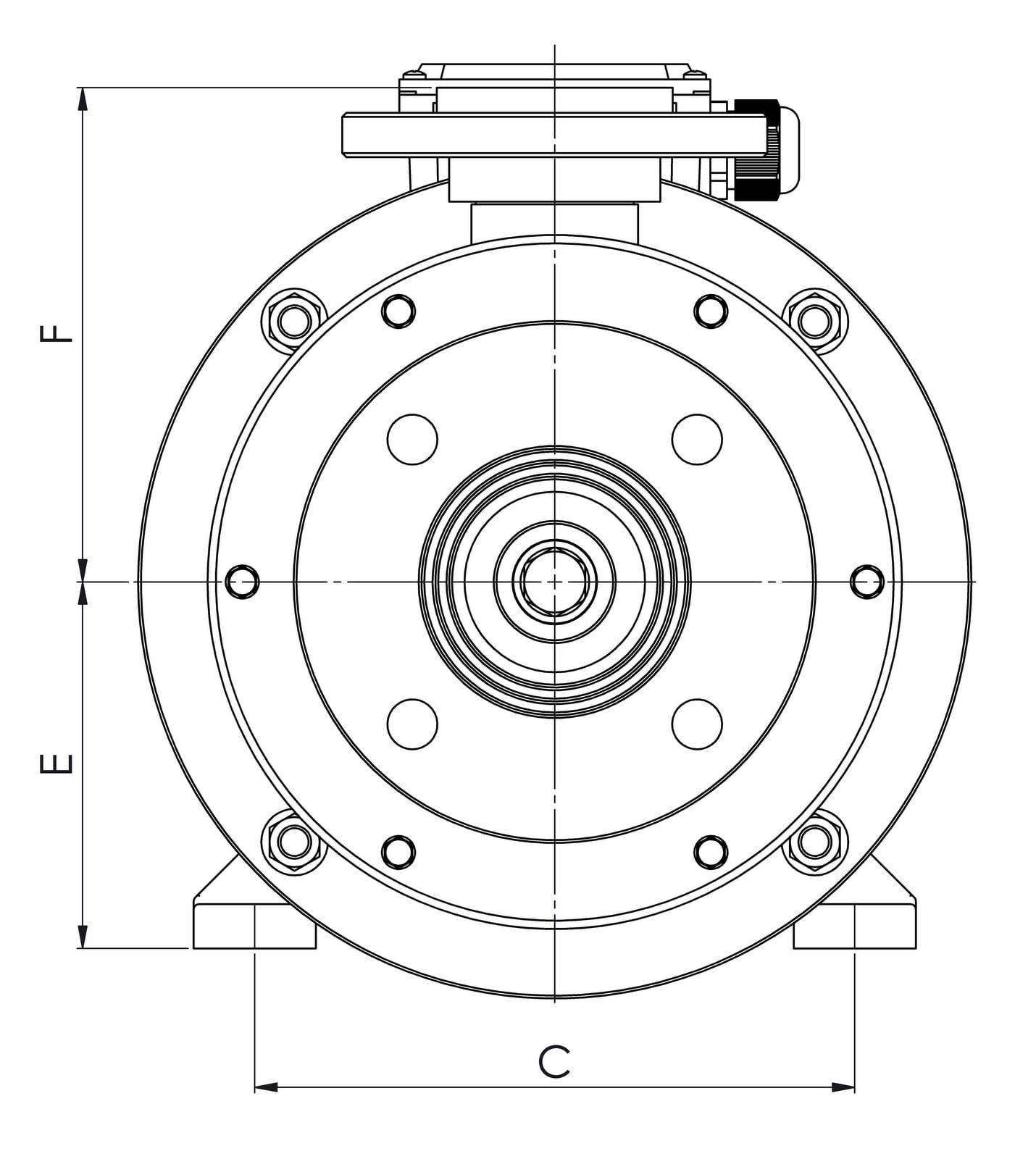

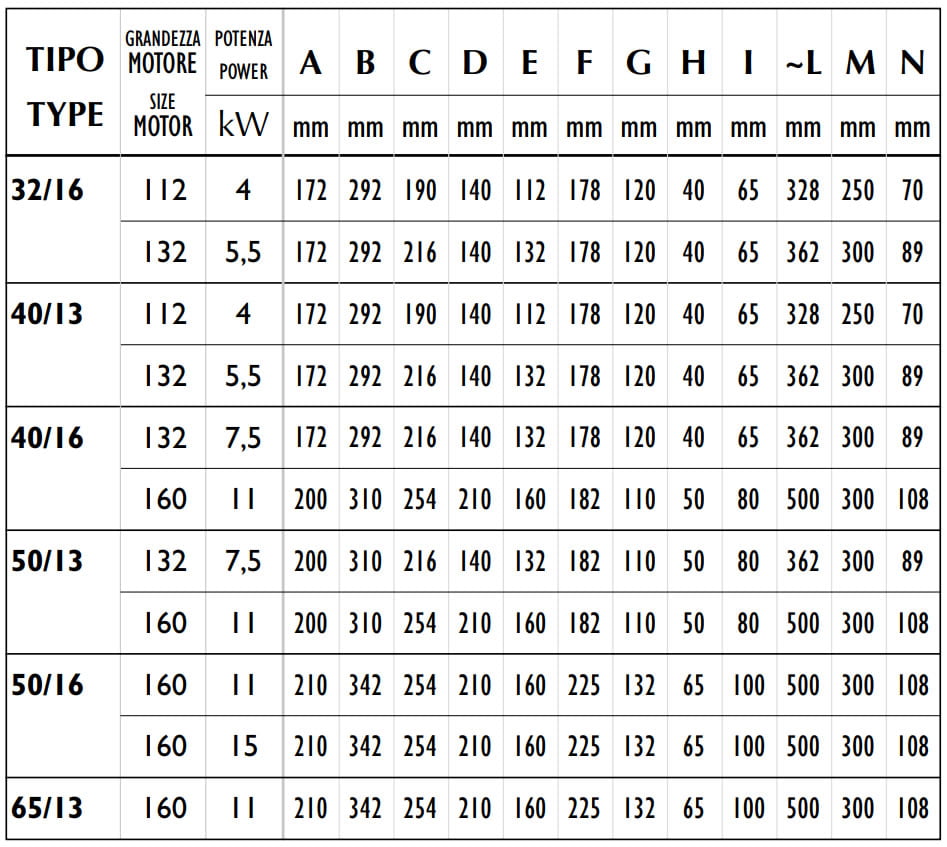

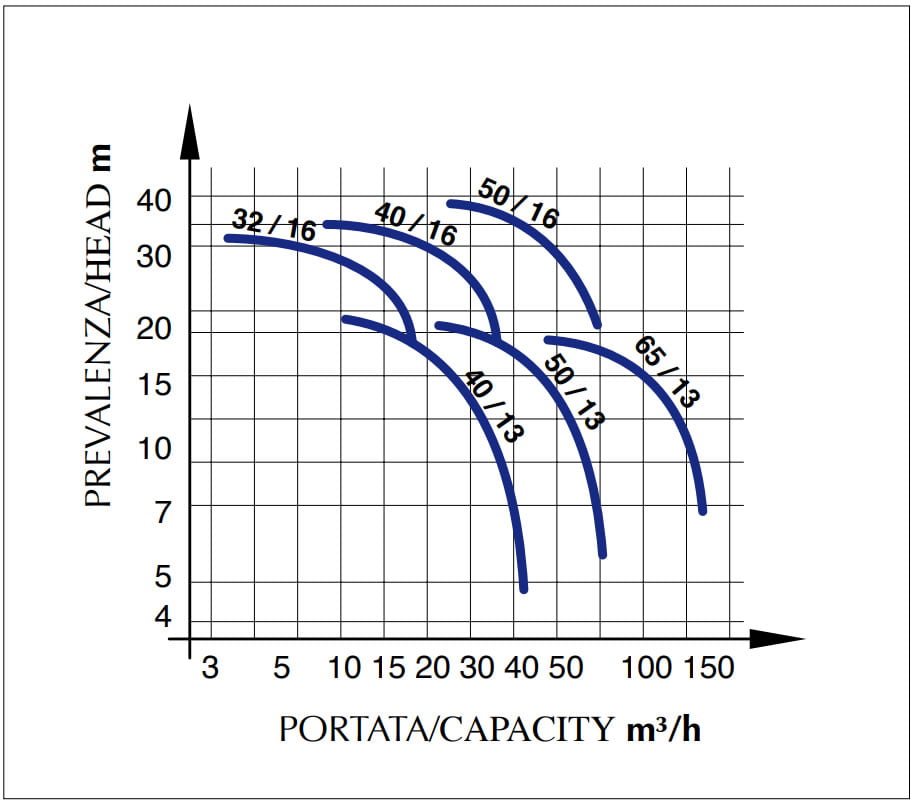

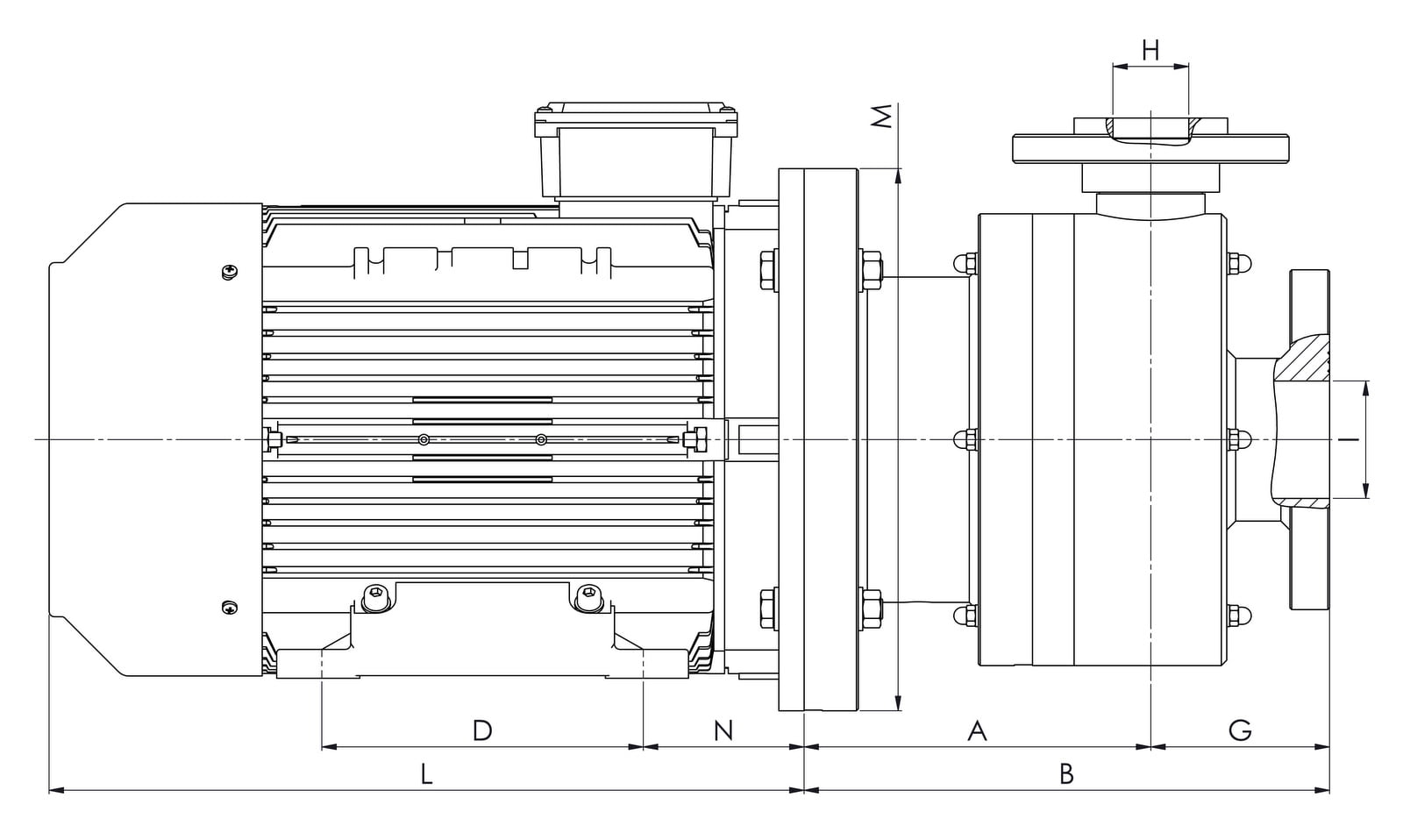

TECHNICAL DATA
MORE INFO?
PMC-2: monobloc acid pump for high flow rates
The PMC-2 shares the basic design of the PMC-1: a horizontal centrifugal pump made of polypropylene (PP), PVC or HDPE, single or double flushed mechanical seal, no metal parts in contact with the pumped liquid and very easy maintenance. What sets it apart is its monobloc construction for high flow rates. Among our horizontal pumps for acids, it is the one intended for moving large volumes of acids and aggressive solutions quickly.
Where the required flow is moderate, the PMC-1 remains the simpler option. Where the fluid is hazardous and no seal leakage can be tolerated, look at the HTM magnetic drive pump. For large transfers and low-head recirculation in continuous duty, the range also includes the EVFA-N external flushed vertical pump.
- Unloading acids from road tankers into storage tanks
- Recirculating large surface treatment tanks
- Feeding gas scrubbing columns
- Transfer duties in industrial wastewater treatment plants
- Distributing chemicals from a central tank to several users
Frequently asked questions
When should I choose the PMC-2 over the PMC-1?
When the required flow rate is high. Both pumps share the same materials and seal options; the PMC-2 is the monobloc version developed for high flow rates. Give us the flow rate and head and we will point you to the right model.
Is the PMC-2 suitable for large-volume acid transfer?
Yes, transferring large quantities between tanks is its typical duty. The material is selected from PP, PVC and HDPE according to the acid being handled.
What does a double flushed seal add?
The flushing liquid between the two seals lubricates and cools the seal faces and forms a barrier between the process fluid and the environment. It is the preferred setup for hazardous fluids or fluids that tend to crystallise.
